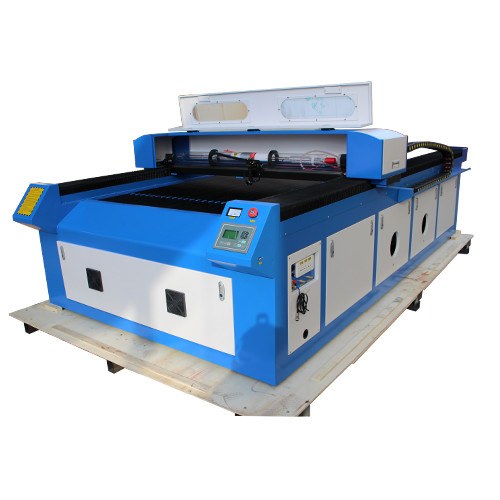

Large Advertising Sign Board Co2 Laser Engraving Cutting Machine 4*8 Feet 1300*2500mm
Application
Application Industry: Model Field(Construction Model,Aviation navigation model, wooden toys), advertising filed,decorative and decorating, craft gift industry, electronic, garments and leather industry, art glass industry, art glass industry,computerized embroidery and clipping, packaging and paper industry.
Main Cutting Materials: Acrylic, density board(MDF), double-color board, paper, plastic, rubber, cloth, wool, crystal, bamboo products, wooden products, etc
Materials Can work With: Organic glass, acrylic board (the paulownia, lightwood), bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials
Features
Laser Head
Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.
Laser Tube
Adopted famous Reci W4 Co2 laser tube, rated power: 100W, peak power: 130W, long time time and stable
Working Table
Knife Strips: With oxidation treatment and low reflection ratio Ensured cutting quality
Dust proof system for Y-axis:Maximum Loading 50kgs with 300mm up-down distance.
Beam Path System
Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.
Motion System
Imported High precision, low friction force and stand wear and linear guide rails and blocks with 3M belt ensured stable transmission, lower noise
Operation System
Advanced USB port Leetro MPC6585 DSP control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency .
With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.
Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.
Rationalized placement of the electronic parts. Optimized heat dissipation effect.
Cooling System
Industrial chiller CW-5000, ensuring the laser tube long time continus working
Technical parameters
| Effective working area | 1300*2500mm |
| Laser Type | Co2 sealed-off laser tube |
| Laser tube power | W4 series, Reci, Beijing (Rated power: 100W, max. Power: 130W) |
| Working table | Knife strip |
| Driver mode | 3 phases stepper motor and Driver, Yako brand |
| Guide rail | Linear square guide rail ( Hiwin,Taiwan) |
| Transmission | Belt transmission |
| Control panel | English |
| Laser output control | 1-100% software setting |
| Engraving speed | 0-60000mm/min |
| Cutting speed | 0-10000mm/min |
| Control system | Leetro MPC6525 |
| Control software | LaserCut 5.3 |
| Design software when delivery | CorelDraw |
| Control panel | DSP offline |
| Resolution accuracy | < 0.01mm |
| Location precision | < 0.01mm |
| Highest scanning accuracy | 2500DPI |
| Type of cooling | Industrial chiller, CW-5000 cooling |
| Water protection system | Yes |
| Blow-off system | Air pump for the laser head Air blower for the machine |
| Biggest scanning accuracy | 2500DPI |
| Working temperature | 0-45 °C |
| Operating humidity | 5-95% (without condensed water) |
| Supporting picture format | PLT,DST,DXF,BMP, DWG,AI,LAS,etc |
| Voltage | AC 220V+10% 50/60Hz, single phase |
| Certificate | CE/FDA |
Reference Parts Photos
Reci W4 100W Co2 laser tube
Linear square guide rail and belt transmission
Dust proof for Y-axis
Leetro control panel
Control cabinet
Power socket & air blower(550W, 2 pcs)
CW-5000 industrial chiller & accessories & packing
Reference Sample Photos
Reference Working Videos
https://www.youtube.com/watch?v=da_Y511ea0g
https://www.youtube.com/watch?v=kcY7ccDJXM4
